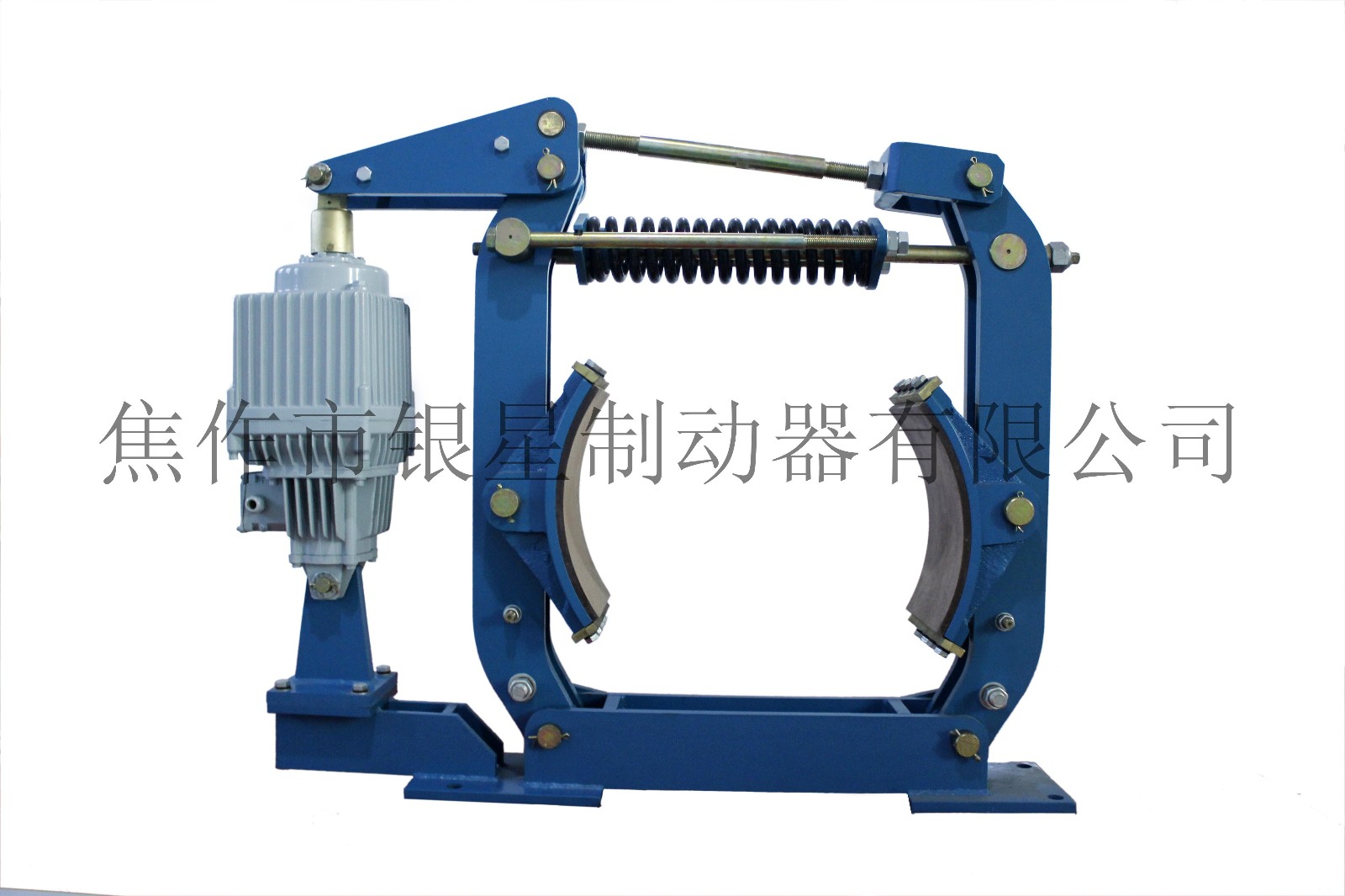

Overview: BYWZ10 series of power hydraulic block brake, widely used in lifting, metallurgy, mine, belt transportation, port, building and other mechanical deceleration and parking brake. The product size and braking distance meet the GB6333-86 standard, and the technical specifications meet the JB6406.2 standard.

　　The product is based on the introduction of Ed series electric power hydraulic propeller produced by German EMG company. It has the following characteristics: 1, excellent performance, good sealing performance and high protection grade. 2. Press molding brake, convenient, quick, long life and high utilization rate. 3. The main point is that the hinge point is equipped with self-lubricating bearings, which has the advantages of reliable transmission, long service life, lifting hooks and convenient maintenance. 4. Additional functions can be realized by adding additional devices. A "S" no drop valve is added to the actuator to achieve braking delay. The "E" travel switch is added to the actuator to realize the normal release or closing signal indication of the brake.

　　Conditions of use: 1, environment temperature: -20 degrees C degrees C+50. 2, there is no danger of explosion, and there is no place in the medium to corrode metal and destroy the insulation of the gas dice and discharge. (the company can provide explosion-proof, anti-corrosion products) 3, generally three-phase AC 50HZ, 380V voltage (according to user requirements can provide 50HZ voltage of different products). 4. The location and altitude of the motor meet the GB755-87 standard. When the ambient humidity is lower than -20 degree C, the working fluid of the propeller is changed to YH-10 aviation hydraulic oil or the heater is required.
